Hey there! As a supplier of fiber laser cutting machines, I've seen firsthand how important it is to keep the optical components of these machines in tip - top shape. A well - maintained fiber laser cutting machine not only lasts longer but also delivers top - notch cutting results. So, today I'm gonna share some tips on how to clean the optical components of a fiber laser cutting machine.
Why Clean Optical Components?
Before we dive into the cleaning process, let's talk about why it's so crucial to clean these components. Optical components like lenses, mirrors, and beam expanders play a key role in directing and focusing the laser beam. Over time, dust, debris, and even tiny particles of the material being cut can accumulate on these surfaces. When this happens, the laser beam can get scattered or absorbed, which means less energy reaches the cutting area. This can lead to reduced cutting quality, slower cutting speeds, and even damage to the optical components themselves.
Tools You'll Need
To clean the optical components, you'll need a few essential tools:
- Lint - free wipes: These are super important because regular paper towels or cloths can leave lint behind, which is just as bad as the dirt you're trying to remove.
- Isopropyl alcohol: A high - purity isopropyl alcohol (at least 90%) is great for dissolving grease and removing stubborn stains.
- Compressed air can: This helps blow away loose dust and debris before you start wiping.
- Soft - bristle brush: It's useful for gently removing larger particles from hard - to - reach areas.
Cleaning the Lenses
Lenses are one of the most critical optical components in a fiber laser cutting machine. Here's how you can clean them:
- Power off the machine: Safety first! Make sure the machine is completely powered down and unplugged before you start cleaning.
- Remove the lens: Depending on your machine model, you might need to use some tools to carefully remove the lens from its housing. Be extra careful not to touch the lens surface with your fingers, as the oils from your skin can leave smudges.
- Blow away loose debris: Use the compressed air can to blow away any loose dust or debris from the lens surface. Hold the can at a distance of about 2 - 3 inches from the lens and use short, sharp bursts of air.
- Apply isopropyl alcohol: Moisten a lint - free wipe with a small amount of isopropyl alcohol. Don't soak the wipe, just make it slightly damp.
- Wipe the lens: Gently wipe the lens surface in a circular motion, starting from the center and moving outwards. Do this a few times until the surface looks clean. Avoid applying too much pressure, as it can scratch the lens.
- Dry the lens: Use a dry part of the lint - free wipe to gently dry the lens. Make sure there are no streaks or moisture left on the surface.
- Reinstall the lens: Once the lens is dry, carefully reinstall it in its housing.
Cleaning the Mirrors
Mirrors are also vital for directing the laser beam. Cleaning them is a bit similar to cleaning the lenses:
- Power down and access the mirror: Just like with the lenses, turn off the machine and find a way to access the mirror. Some mirrors might be protected by covers, so you'll need to remove those first.
- Remove loose particles: Use the compressed air can to blow away any loose dust on the mirror surface.
- Clean with alcohol: Moisten a lint - free wipe with isopropyl alcohol and gently wipe the mirror in a straight line, from one end to the other. Don't use a circular motion like you did with the lens, as it can cause uneven cleaning.
- Inspect for damage: While cleaning, check the mirror for any signs of damage, like scratches or cracks. If you find any, it might be time to replace the mirror.
- Reinstall and align: After cleaning, reinstall the mirror and make sure it's properly aligned according to the machine's specifications.
Cleaning the Beam Expanders
Beam expanders are used to control the size of the laser beam. Cleaning them requires a bit more caution:
- Shut down the machine: As always, turn off the power to the machine before you start.
- Use the soft - bristle brush: Gently brush away any large particles from the beam expander. Be careful not to damage the delicate internal components.
- Blow with compressed air: Use the compressed air can to remove the remaining loose dust.
- Wipe with alcohol: Moisten a lint - free wipe with isopropyl alcohol and carefully wipe the external surfaces of the beam expander. Avoid getting alcohol inside the expander, as it can damage the internal optics.
Frequency of Cleaning
How often you should clean the optical components depends on how often you use the machine and the type of materials you're cutting. If you're using the machine for long hours every day or cutting materials that produce a lot of debris, like some metals, you might need to clean the components every few days. For less frequent use or cleaner - cutting materials, a weekly or bi - weekly cleaning might be sufficient.
Additional Tips
- Keep the environment clean: Try to keep the area around the fiber laser cutting machine clean. A clean working environment reduces the amount of dust and debris that can get into the machine.
- Follow the manufacturer's instructions: Every fiber laser cutting machine is a bit different, so always refer to the manufacturer's manual for specific cleaning instructions and safety precautions.
Our Fiber Laser Cutting Machines

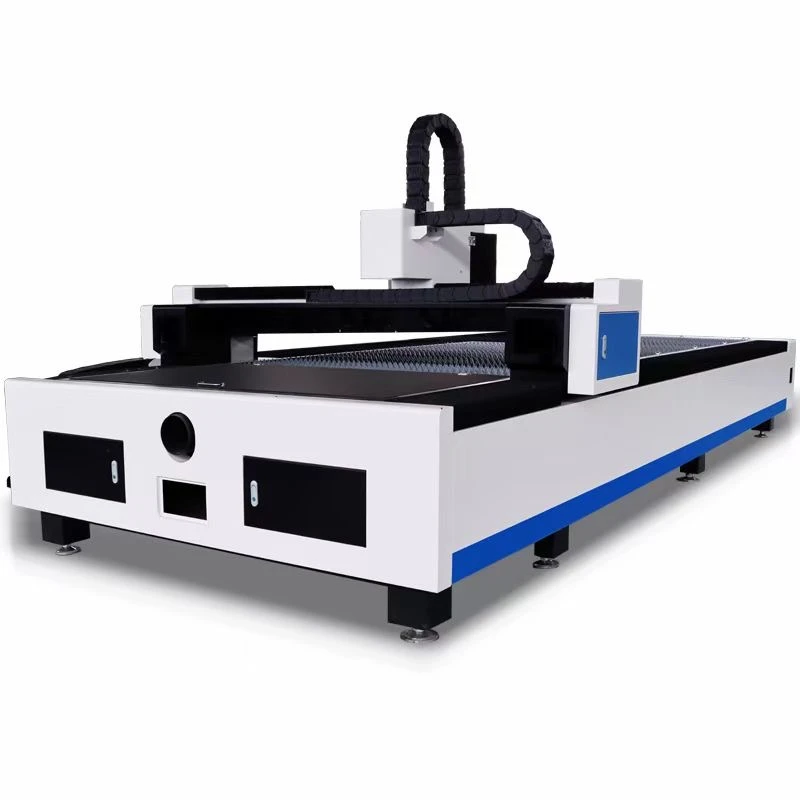

At our company, we offer a wide range of fiber laser cutting machines, including the Desktop Fiber Laser Cutting Machine, Tube Fiber Laser Cutting Machine, and Metal Tube Laser Cutting Machine. These machines are built with high - quality optical components, and with proper cleaning and maintenance, they can serve you well for a long time.
If you're in the market for a fiber laser cutting machine or need more advice on maintaining your existing one, don't hesitate to reach out. We're here to help you make the most of your investment and ensure your machine operates at its best. Whether you're a small - scale workshop or a large - scale manufacturing plant, we've got the right solution for you. So, contact us today to start a conversation about your fiber laser cutting needs!
